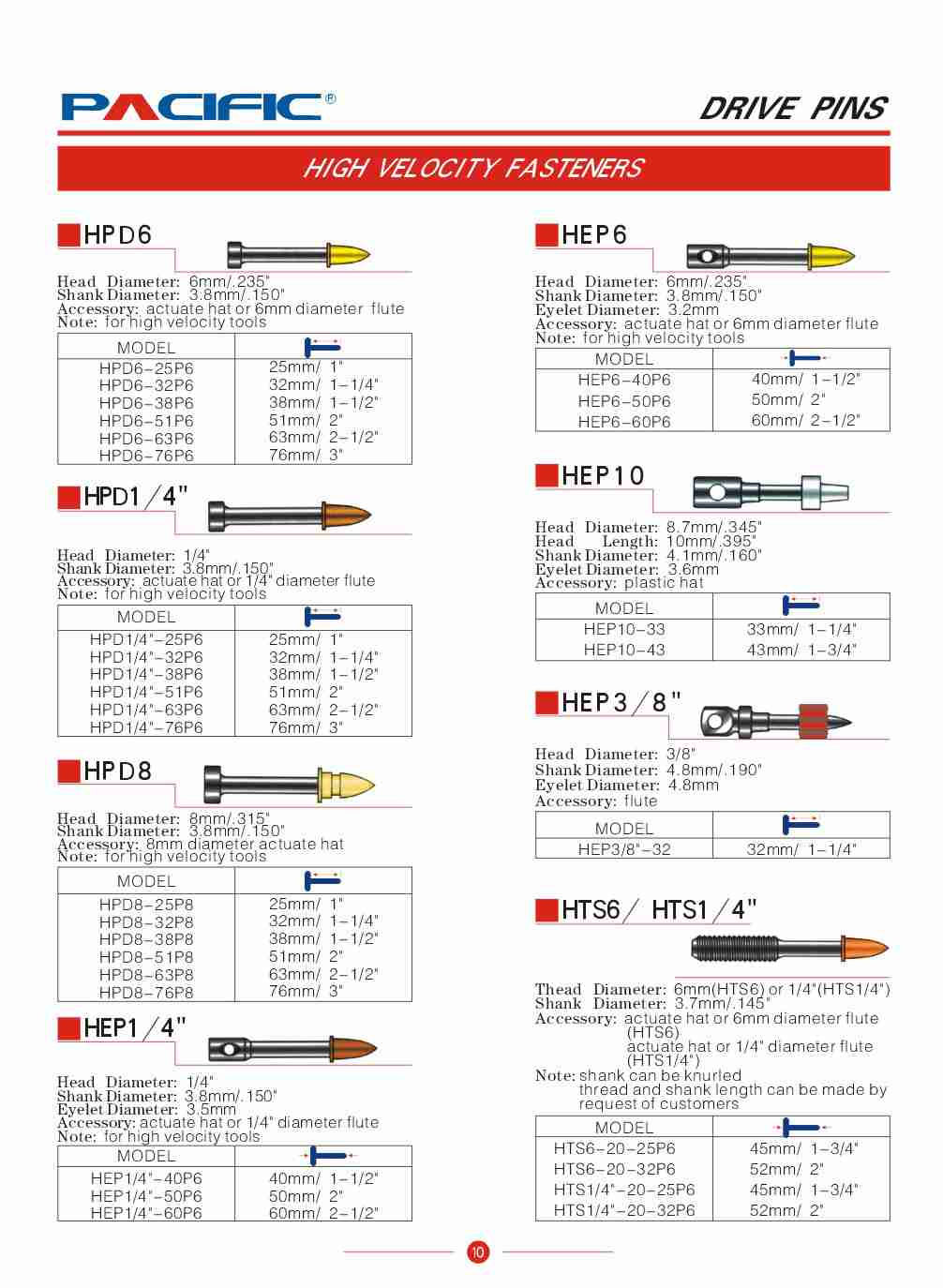

HEP6

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of HED1/4”

Head Diameter:6mm/.235”

Shank Diameter:3.8mm/.150”

Eyelet Diameter:3.2mm

Accessory:actuate hat or 6mm diameter flute

Note:for high velocity tools

Model:HED6-40P6, HED6-50P6, HED6-60P6

HEP1/4″

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of HeD1/4”

Head Diameter:1/4”

Shank Diameter:3.8mm/.150”

Eyelet Diameter:3.5mm

Accessory:actuate hat or 1/4”mm diameter flute

Note:for high velocity tools

Model:HED1/4”-40P6, HED1/4”-50P6, HED1/4”-60P6

HPD8

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of HPD8

Head Diameter:8mm/.315”

Shank Diameter:3.8mm/.150”

Accessory:8mm diameter actuate hat

Note:for high velocity tools

Model:HPD8-25P6, HPD8-32P6, HPD8-38P6, HPD8-51P6, HPD8-63P6, HPD8-76P6

HPD1/4″

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of HPD1/4”

Head Diameter:1/4”

Shank Diameter:3.8mm/.150”

Accessory:actuate hat or 1/4”mm diameter flute

Note:for high velocity tools

Model:HPD1/4”-25P6, HPD1/4”-32P6, HPD1/4”-38P6, HPD1/4”-51P6, HPD1/4”-63P6, HPD1/4”-76P6

HPD6

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of HPD6

Head Diameter:6 mm/.235”

Shank Diameter:3.8mm/.150”

Accessory:actuate hat or 6mm diameter flute

Note:for high velocity tools

Model:HPD6-25P6, HPD6-32P6, HPD6-38P6, HPD6-51P6, HPD6-63P6, HPD6-76P6

INSULATION WASHER PIN

02 17, 2017
posted by Chongqing Bravo Pacific

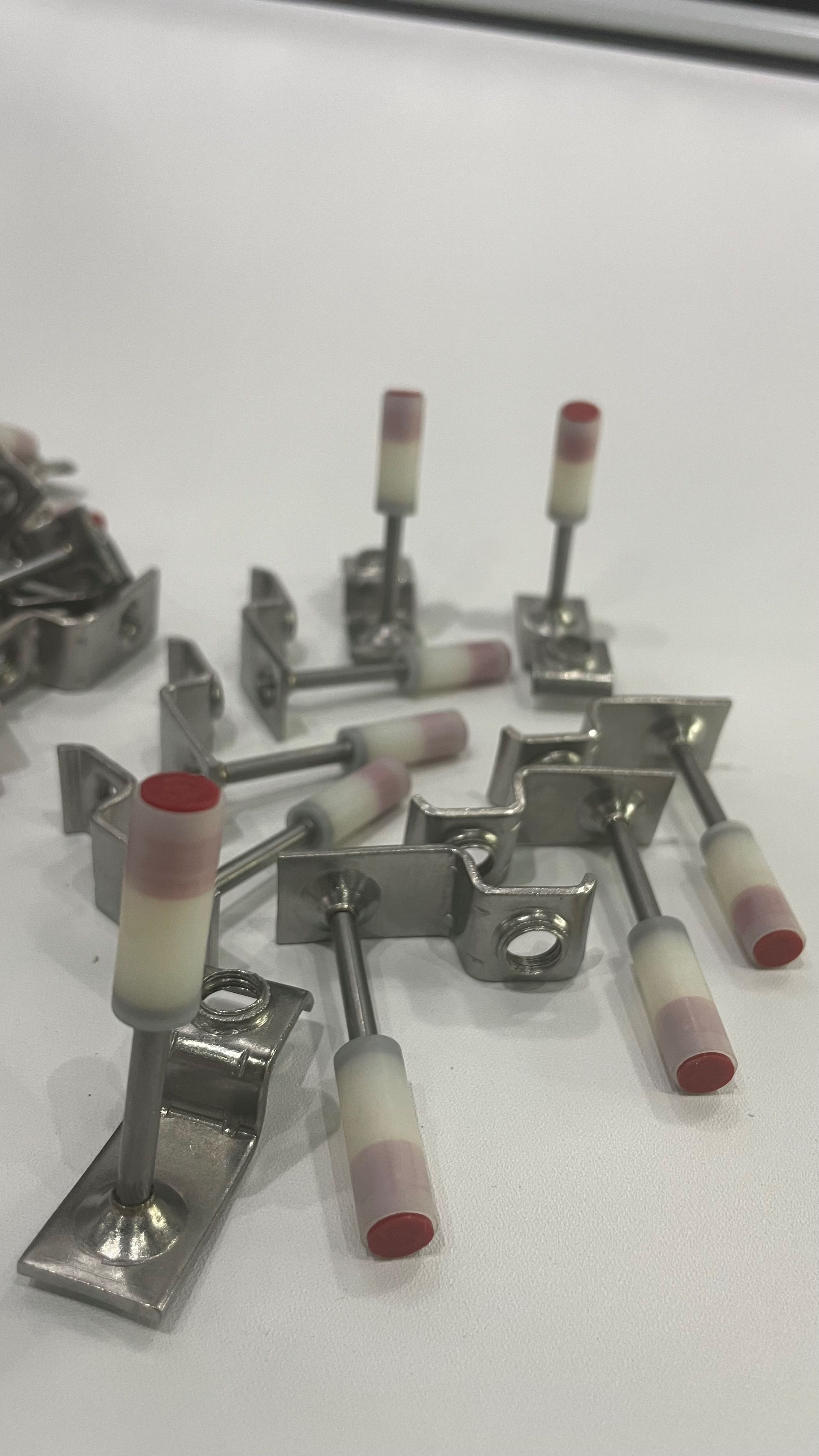

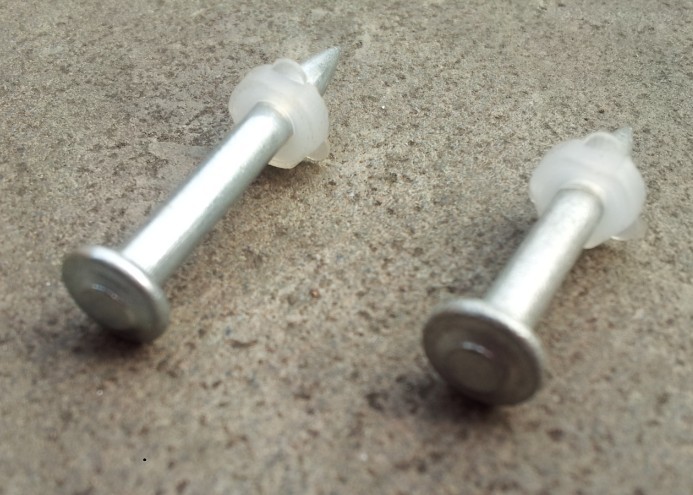

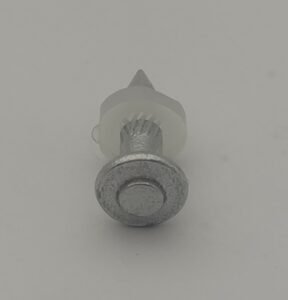

Insulation Washer Pin

Mode:Drive Pin size from 25mm to 160mm.

         Plastic Plate size can available 42,52,62,72

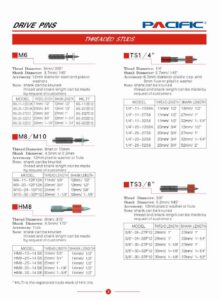

HM8

02 17, 2017
posted by Chongqing Bravo Pacific

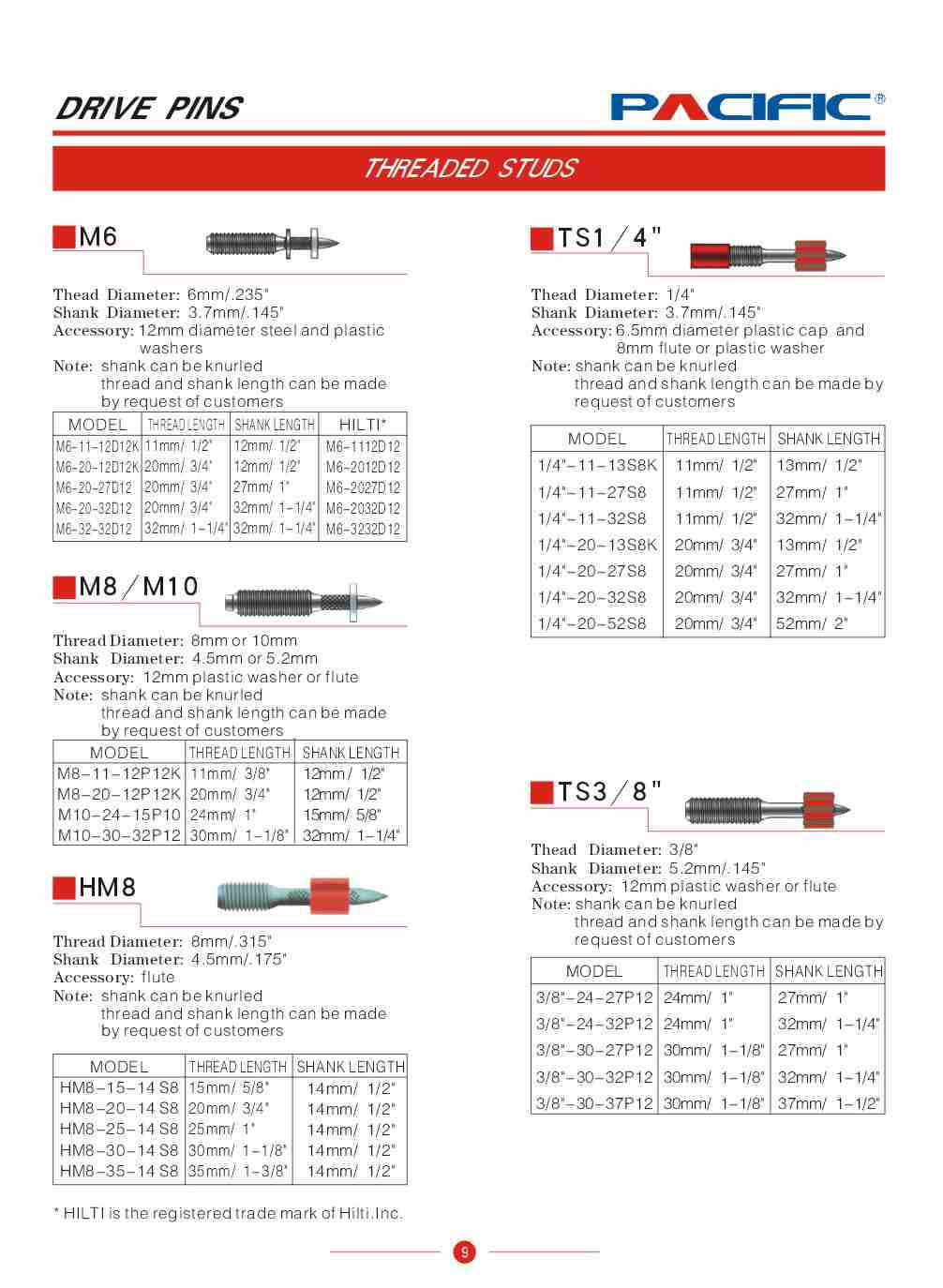

Drive Pin of HM8

Thead Diameter:8mm/.315

Shank Diameter:4.5mm /.175”

Accessory: flute

Note:shank can be knurled thread and shank length can be made by request of customers

Model:HM8-15-14S8, HM8-20-14S8, HM8-25-14S8. HM8-30-14S8, HM8-35-14S8

TS3/8″

02 17, 2017
posted by Chongqing Bravo Pacific



Drive Pin of TS3/8”

Thead Diameter:3/8”

Shank Diameter:5.2mm /.145”

Accessory:12mm plastic washer or flute

Note:shank can be knurled thread and shank length can be made by request of customers

Model:3/8”-24-27P12, 3/8”-24-32P12, 3/8”-30-27P12, 3/8”-30-32P12, 3/8”-30-37P12

TS1/4″

02 17, 2017
posted by Chongqing Bravo Pacific

Drive Pin of M8/M10

Thead Diameter:8mm or 10mm

Shank Diameter:4.5mm or 5.2mm

Accessory:12mm plastic washer or flute

Note:shank can be knurled thread and shank length can be made by request of customers

Model:M8-11-12P12K,  M8-20-12P12K,  M10-24-15P10, M10-30-32P12

M8

02 17, 2017
posted by Chongqing Bravo Pacific

Drive Pin of M8/M10

Thead Diameter:8mm or 10mm

Shank Diameter:4.5mm or 5.2mm

Accessory:12mm plastic washer or flute

Note:shank can be knurled thread and shank length can be made by request of customers

Model:M8-11-12P12K,  M8-20-12P12K,  M10-24-15P10, M10-30-32P12
