CHONGQING BRAVO PACIFIC INDUSTRIAL CORP.,LTD

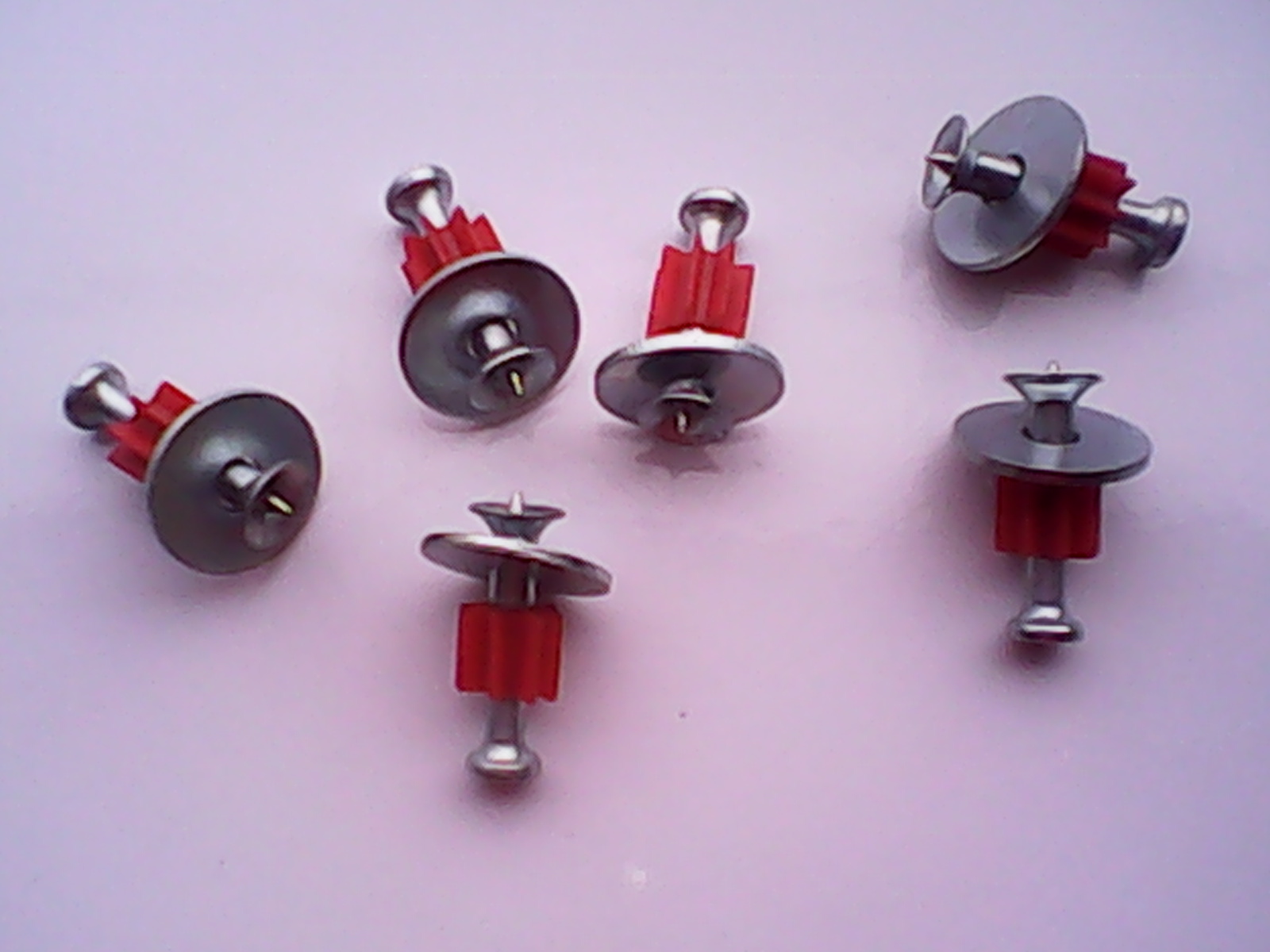

NAME: 32mm Ceiling nail with Metal flat washer

PACKING : 250 pcs per box, 10 box per carton

USE : Suitable for fixing wooden keels,etc.

Product Name: PD DRIVE PINS

Head Diameter: 7.6 mm/.300″

Shank Diameter : 3.7 mm/.145″

 Accessory: plastic flute

Model:

PD22P10      22MM/  7/8″

PD25P10     25MM/  1″

PD32P10     32MM/  1-1/4″

PD38P10      38MM/ 1-1/2″

PD44P10     44MM/  1-3/4″

PD51P10     51MM/  2″

PD57P10    57MM/  2-1/4″

PD63P10    63MM/2-1/2″

PD76P10    76MM/  3″

Head Diameter : 6.3 mm/.250″

Shank Diameter : 2.6 mm/.100″

Accessory : white collated strip

Note : 10 pcs in a strip

Model :

PDC16               16mm /5/8″

PDC19               19mm /3/4″

PDC22               22mm /7/8″

PDC25               25mm/1/25″

PDC32               32mm/1-1/4″

PDC37               37mm/1-1/2″

Head Diameter: 9.0 mm / .300″

Shank Diameter : 3.7 mm /.145 ”

Accessory : point cap

Model :

EPD9-16P9               16mm/519″

PD9-30P9                 30mm/1-118″

PD9-35P9                 35mm/1-318″

PD9-40P9                 40mm/1-112″

PD9-50P9                 50mm/2″

PD9-60P9                 60mm/2-318″

PD9-15P9                  15mm/518″

PD9-20P9                 20mm/314″

PD9-25P9                 25mm/1″

PD9-70P9                 70mm/2-314″

Suitable for fixing wooden keels, etc.

Washer diameter : 17 mm,  23 mm.

This product is classified as non-toxic and non-hazardous by the department of Transportation allowing for standard shipping of the fasteners. Users of the fastening system are not required to be licensed as they would to use an explosive based system.

Head Diameter : 6.3 mm

Shank Diameter : 3.0 mm – 2.6 mm

Accessory : Plastic strip

Note : 10 pcs in a strip

step shank well performance

K : for steel work , shank Knurled

Model :

For M6, M8, W1/4, W5/16, 1/4UNC thread bar

Nail length : 32mm, 37mm

This product is classified as non-toxic and non-hazardous by the department of Transportation allowing for standard shipping of the fasteners. Users of the fastening system are not required to be licensed as they would to use an explosive based system.

Suitable for pipeline fixing .

Nail length : 32 mm

for pipe : 13,16, 20, 25, 30 mm

This product is classified as non-toxic and non-hazardous by the department of Transportation allowing for standard shipping of the fasteners. Users of the fastening system are not required to be licensed as they would to use an explosive based system.

Product specifications ：

The specification of the anchor nail is selected, and the anchor nail specification B is selected according to the thickness A of the heat insulating material.
BWD is the model for anchoring nails, 25 is for anchoring nail specifications, and -42 is for nailing lengths assembled in anchoring nails.

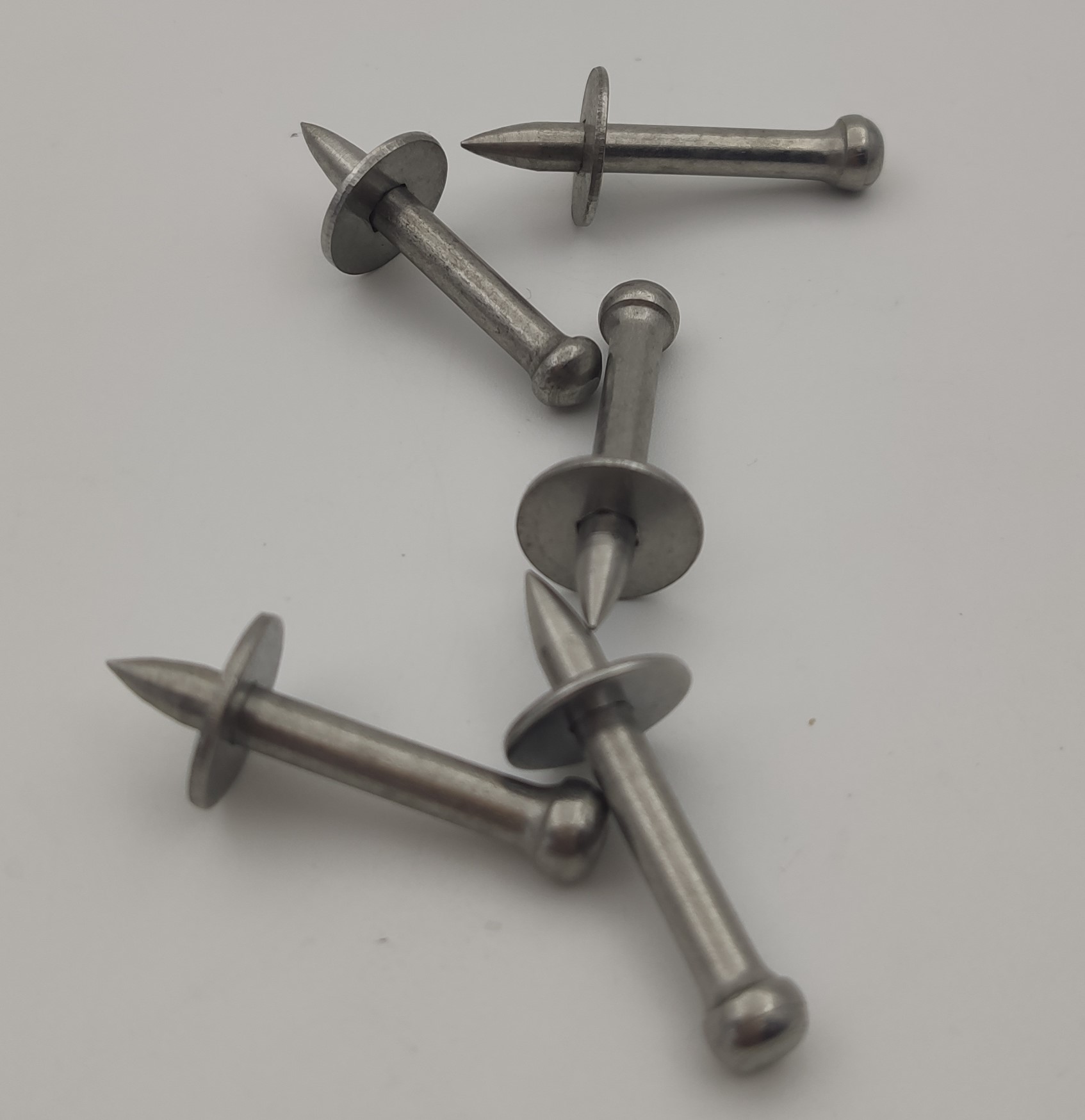

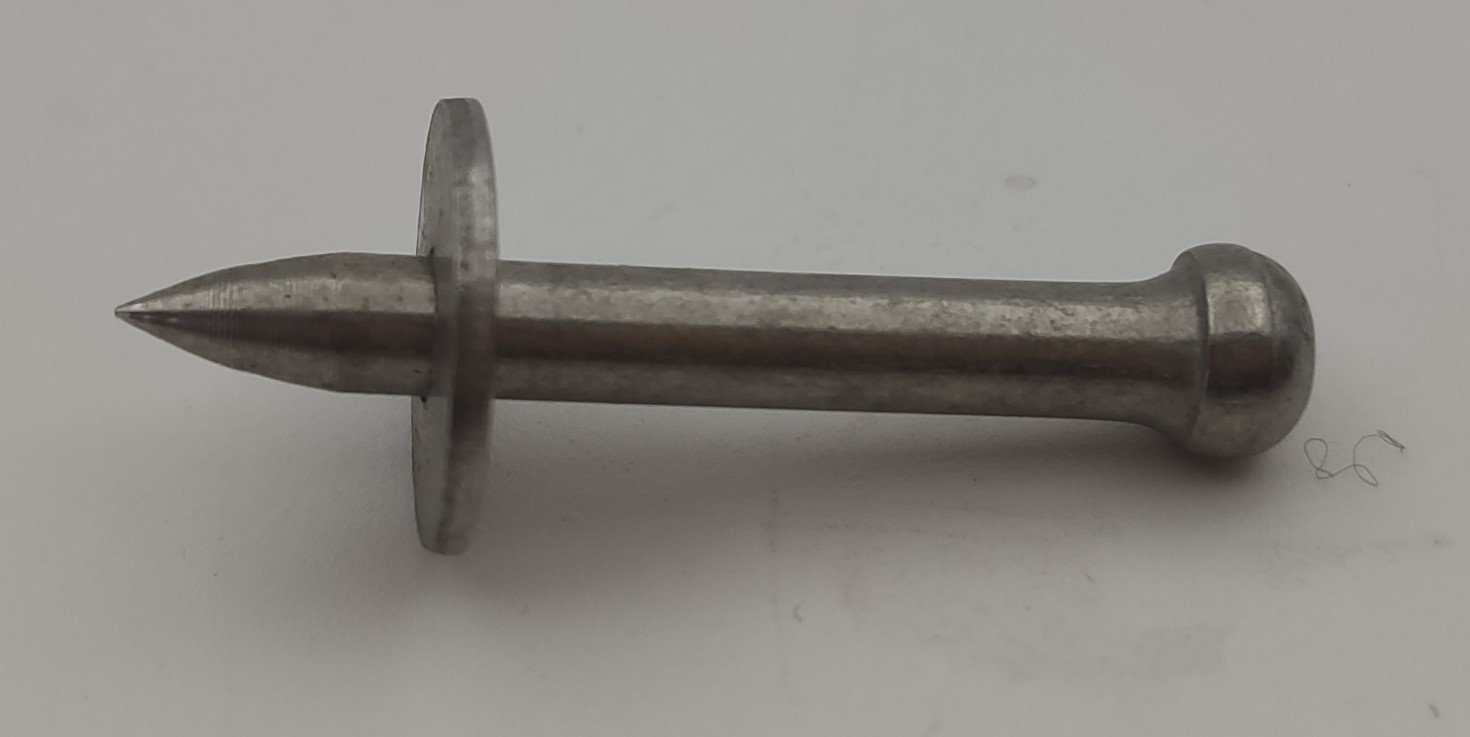

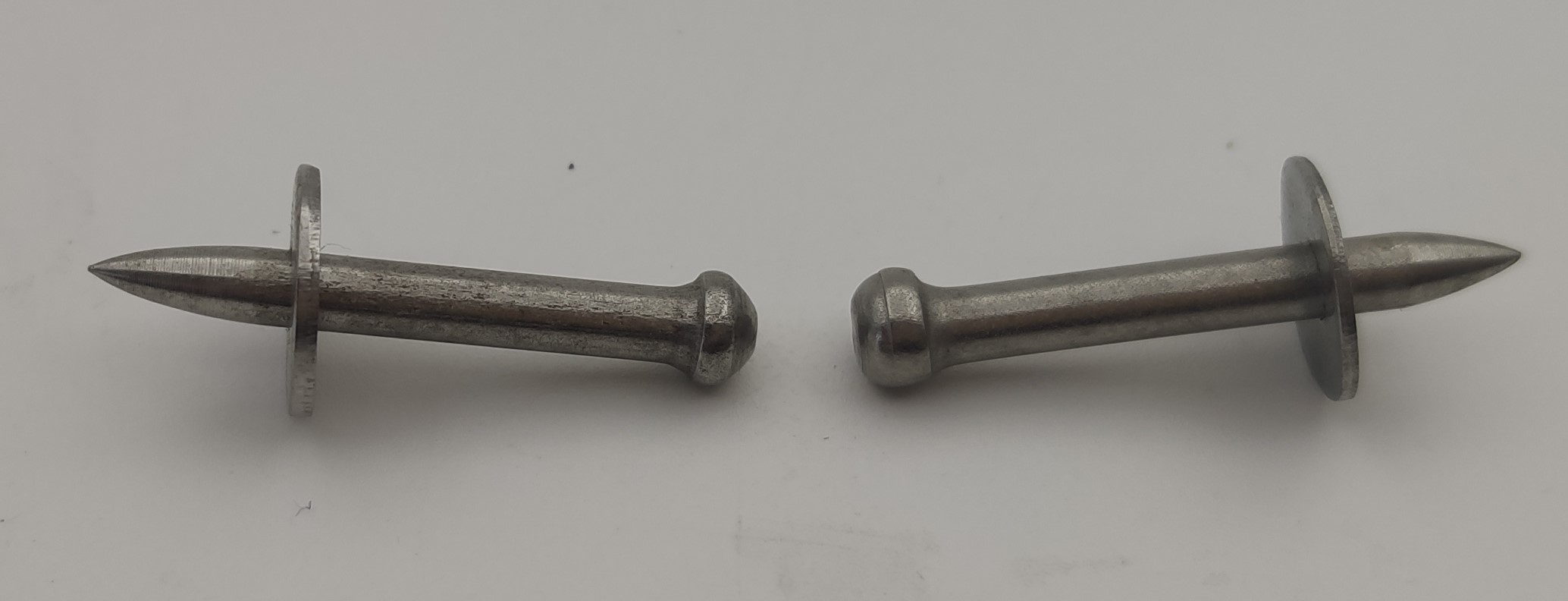

Head Diameter : 6.3 mm

Shank Diameter : 3.0 mm

Accessory : Plastic strip

Note : 10 pcs pins in a strip

Suitable for corrosion resistant environments such as concrete , brick walls, steel structures

Model :

3.0 X 19 mm

3.0 X 20 mm

3.0 X 22 mm

3.0 X 25 mm
