CHONGQING BRAVO PACIFIC INDUSTRIAL CORP.,LTD

Product specifications ：

The specification of the anchor nail is selected, and the anchor nail specification B is selected according to the thickness A of the heat insulating material.
BWD is the model for anchoring nails, 25 is for anchoring nail specifications, and -42 is for nailing lengths assembled in anchoring nails.

Head Diameter : 6.3 mm

Shank Diameter : straight shank diameter 3.0 mm,step down shank diameter 3.0-2.6mm

Accessory : Plastic strip

Note : 10 pcs pins in a strip

Suitable for corrosion resistant environments such as concrete , brick walls, steel structures

Model :

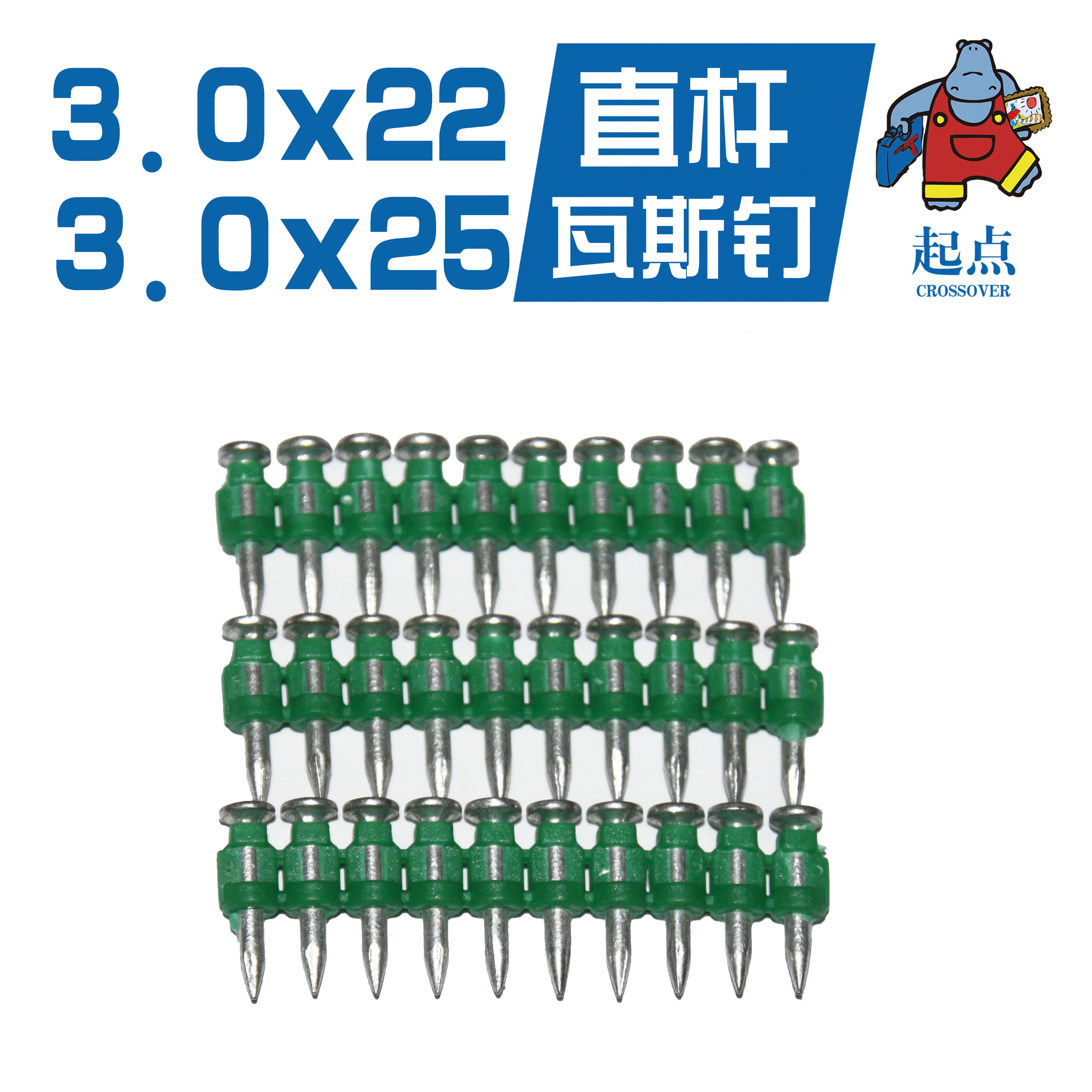

3.0 X 19 mm

3.0 X 20 mm

3.0 X 22 mm

3.0 X 25 mm

Head Diameter : 6.3 mm

Shank Diameter : 3.0 mm-2.6 mm

Accessory : Plastic strip

Note : 10 pcs  pins in a strip .

Step shank well performance

K : for steel work.

Head Diameter :6.3 mm

Shank Diameter : 2.7/3.0 mm

Accessory : Plastic strip

Note : 10 pcs pins in a strip

Straight shank

Nail Length :

C5  gas nail

Head Diameter : 6.3 mm

Shank Diameter : 2.7 mm

Accessory : Plastic strip

Note : 10 pcs in a strip , Straight shank, ballistic point

The spiral Knurl provides a positive lock and resists back-out

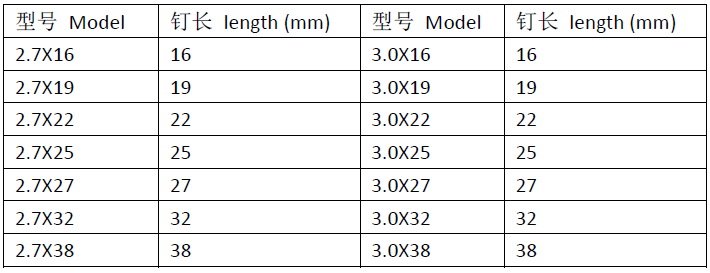

Nail length : 16、19、22、25、27、32、38 mm length .

Head Diameter:  7.6mm/.300"

Shank Diameter:  3.7mm/.145"

Accessory:  flute

MODEL:                                  SIZE:

PD22P10                                22mm/ 7/8"

PD25P10                                25mm/  1"

PD32P10                                32mm/  1-1/4"

PD38P10                                38mm/  1-1/2"

PD44P10                                44mm/  1-3/4"

PD51P10                                51mm/  2"

PD57P10                                57mm/  2-1/4"

PD63P10                                63mm/  2-1/2"

PD76P10                                76mm/  3"

Head Diameter: 7.6mm/.300  Shank Diameter: 3.7mm/.145

Accessory: flute             Note: knurled shank

                                    MODEL:

EPD 13P10 13mm/ 1/2        EPD 16P10 16mm/ 5/8

EPD 19P10 19mm/ 3/4        EPD 22P10 22mm/ 7/8

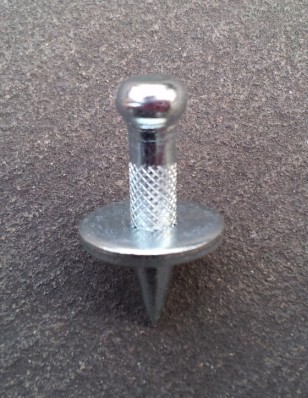

Head Diameter: 5.7mm/.225 Shank Diameter: 3.7mm/.145

Accessory: 12mm diameter steel washer  Note: knurled shank

                                Model:

HQD13S12 13mm/ 1/2       HQD16S12 16mm/ 5/8 ENK16S12

HQD19S12 19mm/ 3/4 ENK19S12     HQD22S12 22mm/ 7/8 ENK22S12

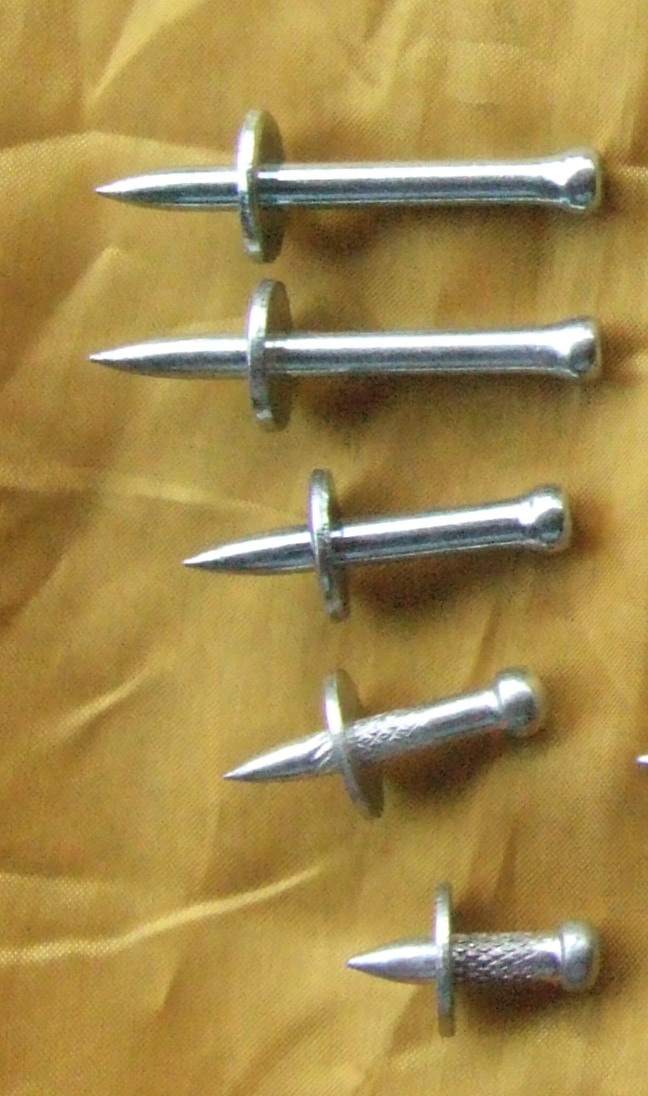

Head Diameter: 5.7mm/.225   Shank Diameter: 3.7mm/.145

Accessory:12mm diameter steel washer   Note:HCS or stainless steel material available

Model:

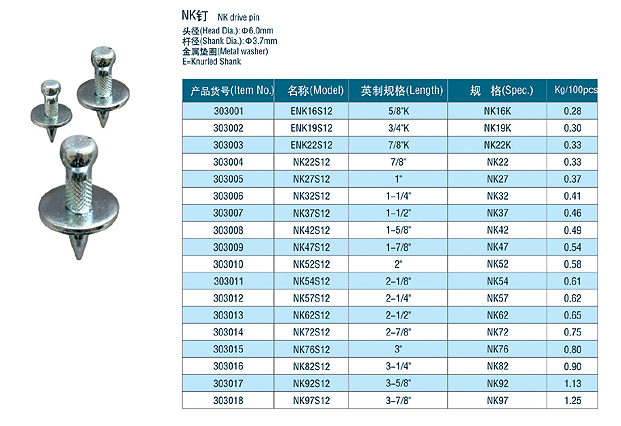

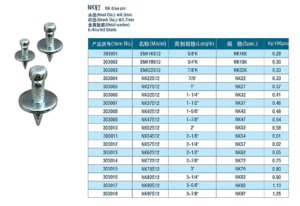

QD27S12 27mm/ 1 HILTI:NK27S12          QD32S12 32mm/ 1-1/4 HILTI: NK32S12

QD37S12 37mm/ 1-1/2 HILTI:NK37S12    QD42S12 42mm/ 1-5/8 HILTI:NK42S12

QD47S12 47mm/ 1-7/8 HILTI:NK47S12    QD52S12 52mm/ 2 HILTI:NK52S12

QD57S12 57mm/ 2-1/4 HILTI:NK57S12    QD62S12 62mm/ 2-1/2 HILTI:NK62S12

QD72S12 72mm/ 3 HILTI:NK72S12

NK32S12 100PCS/BOX,5000pcs/ctn,20kgs/ctn,160000pcs/pallet

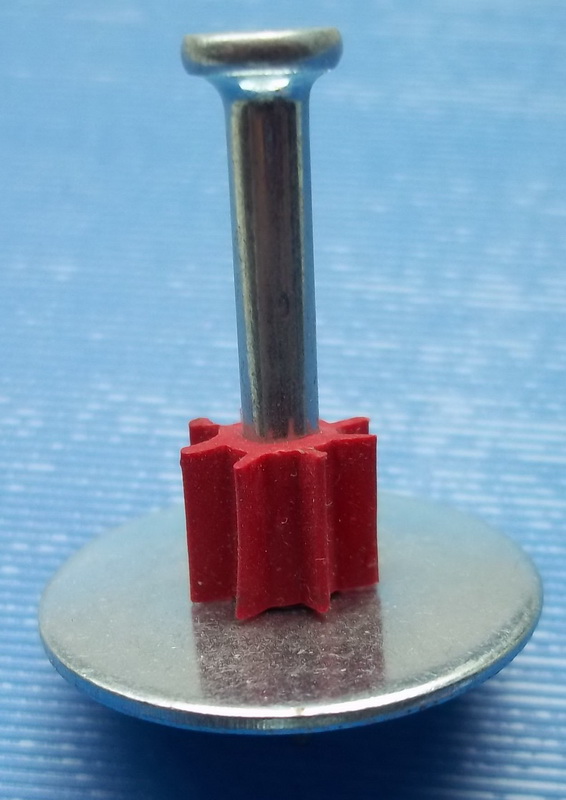

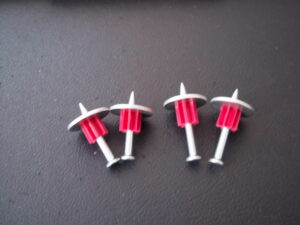

Head Diameter: 7.6mm/.300 Shank Diameter:3.7mm/.145

Accessory: flute and 25mm diameter steel washer

Note:3/4 or 7/8 diameter steel washer can be made by request of customers

Model:

PDW19P10S25 19mm/ 3/4        PDW25P10S25 25mm/ 1

PDW32P10S25   32mm/ 1-1/4   PDW38P10S25 38mm/ 1-1/2

PDW51P10S25 51mm/ 2           PDW63P10S25 63mm/ 2-1/2

PDW76P10S25 76mm/ 3

100pcs/box,20boxes/ctn
