CHONGQING BRAVO PACIFIC INDUSTRIAL CORP.,LTD

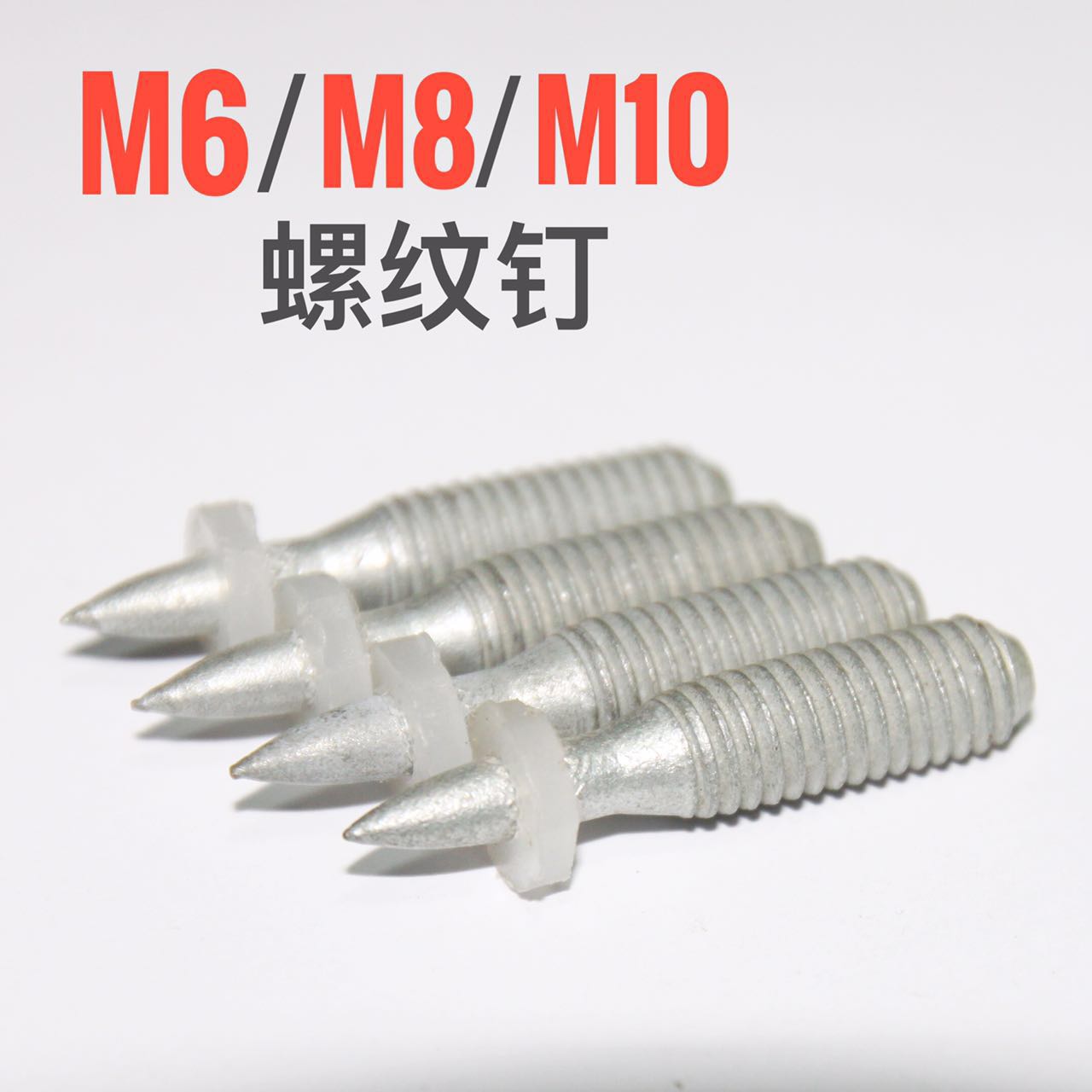

Thread Diameter: 8mm/.315

Shank Diameter: 4.5mm/.175

Accessory: flute

Note:Shank can be knurled thread and shank length can be made by request of customers

Model:

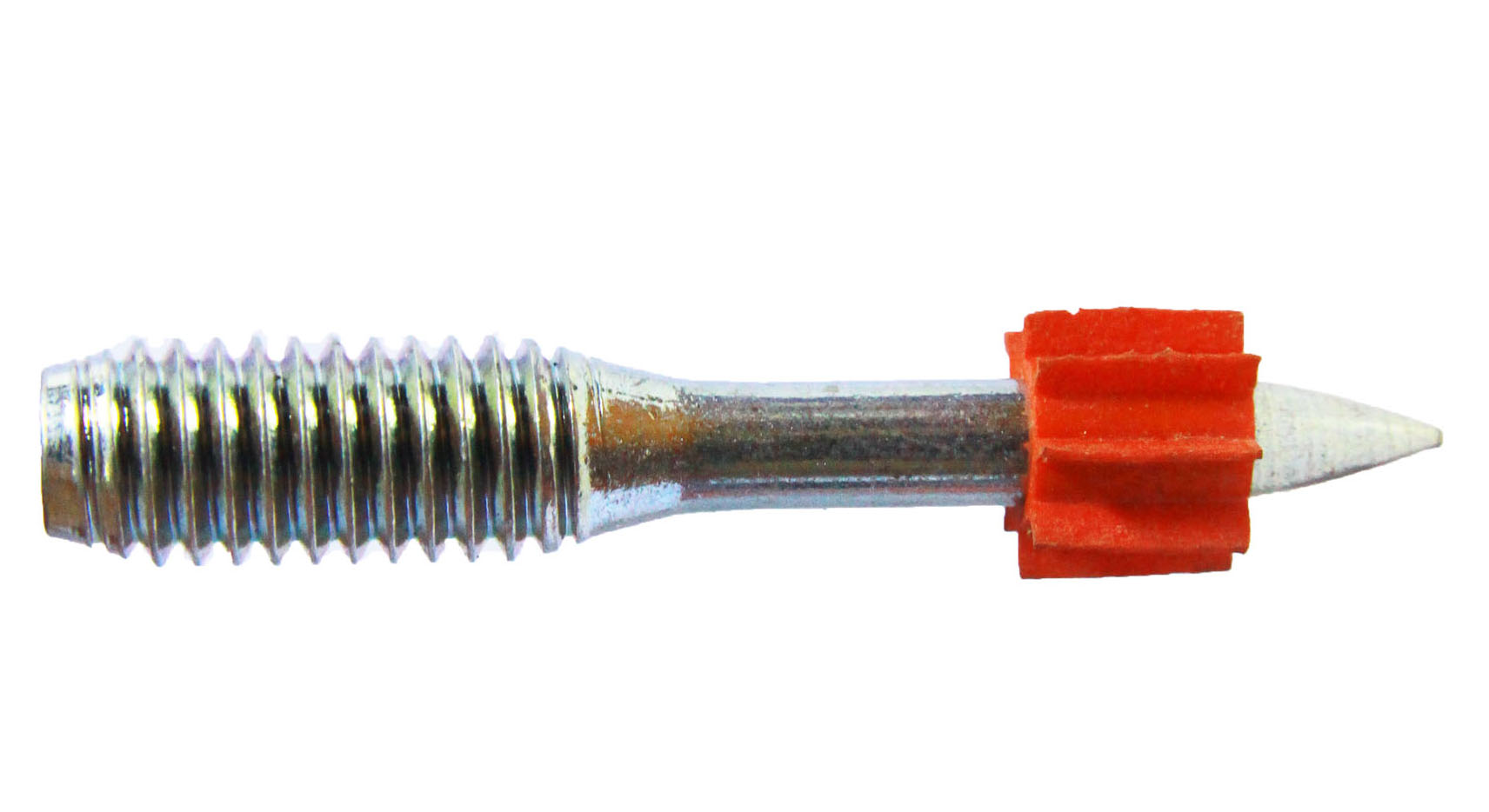

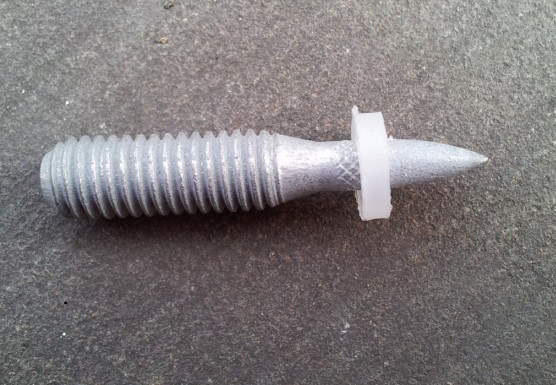

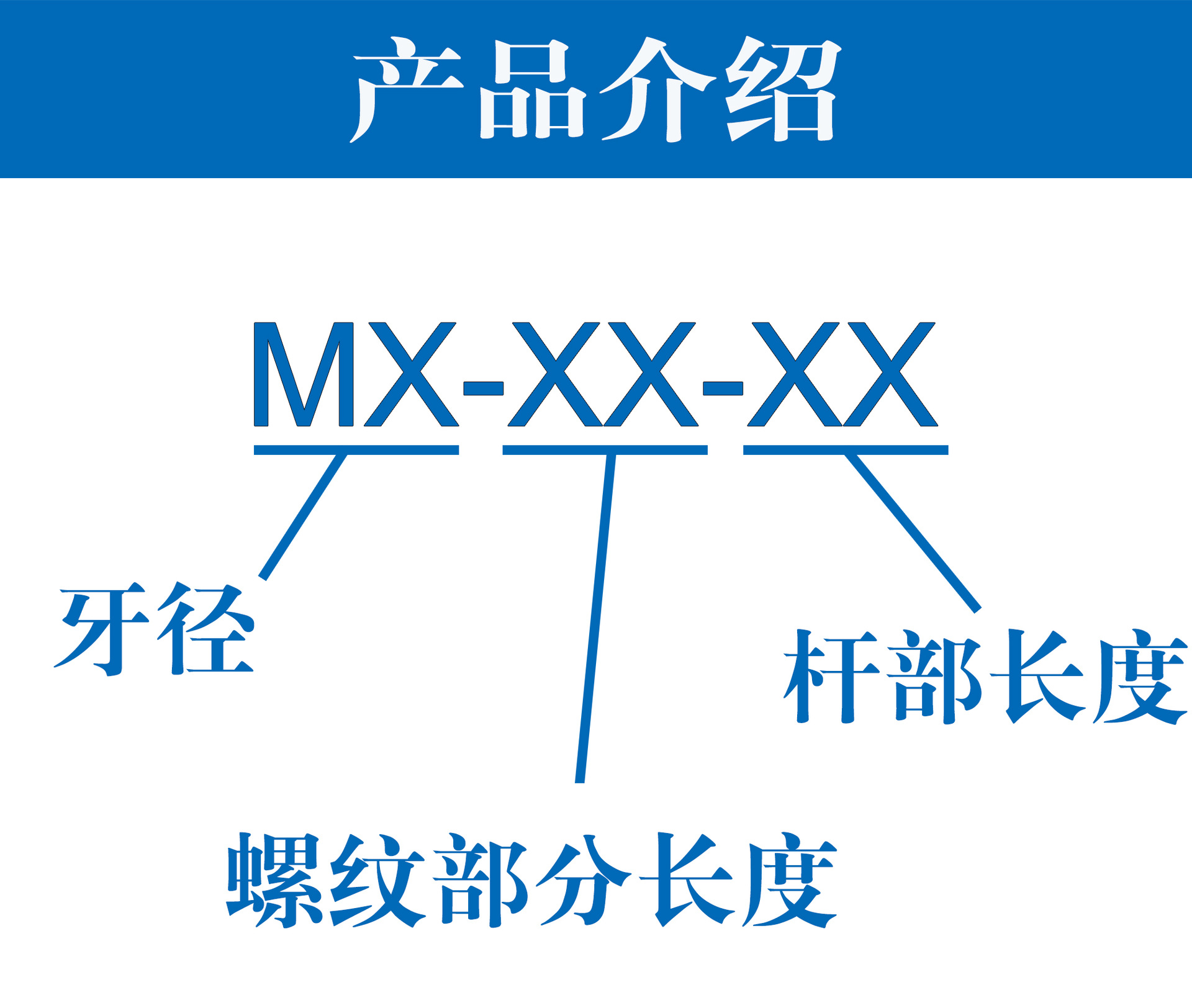

M8-17-12P8 thread length 17mm shank length 12mm with diameter 8mm washer

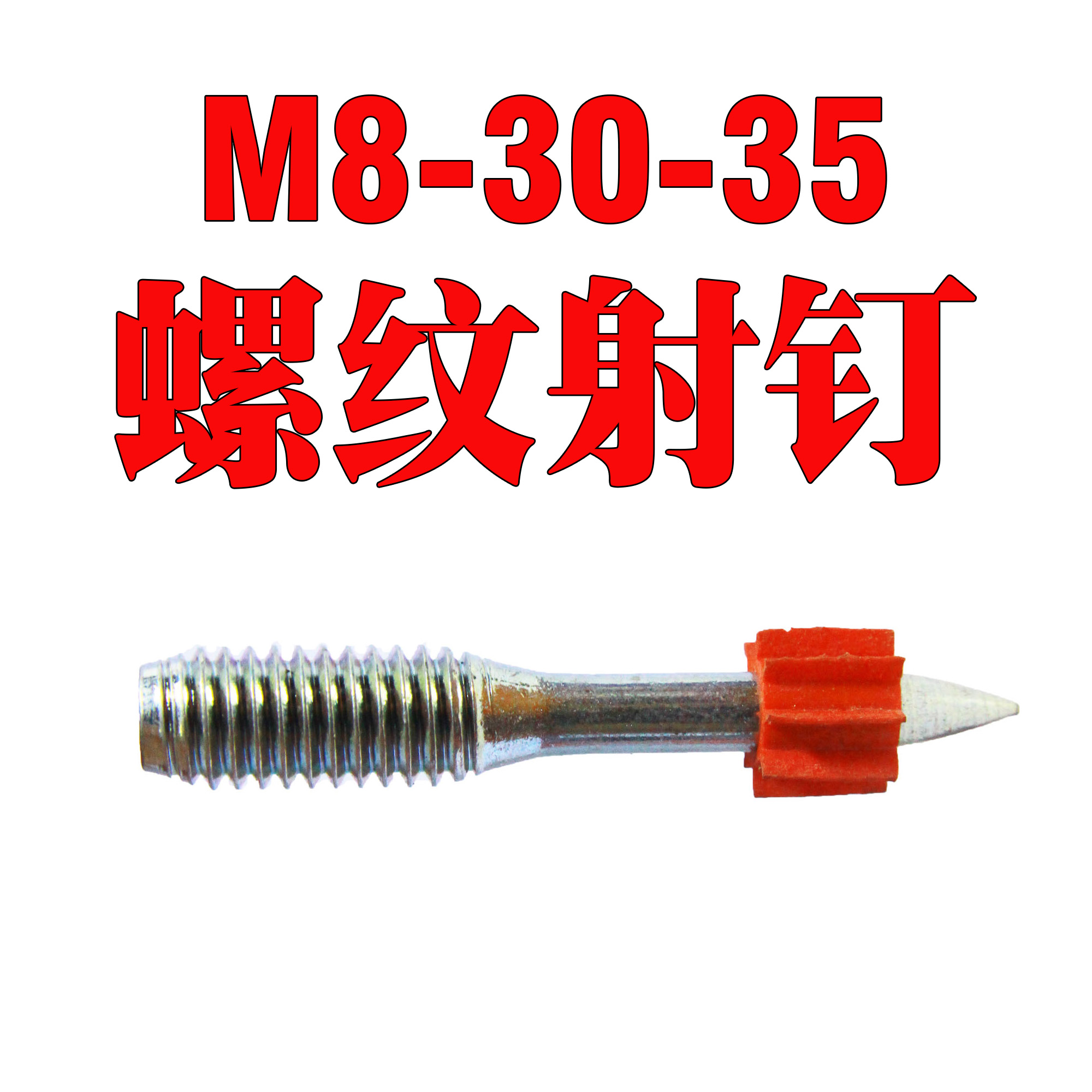

M8-30-35P10 thread length 30mm shank length 35mm with diameter 10mm washer

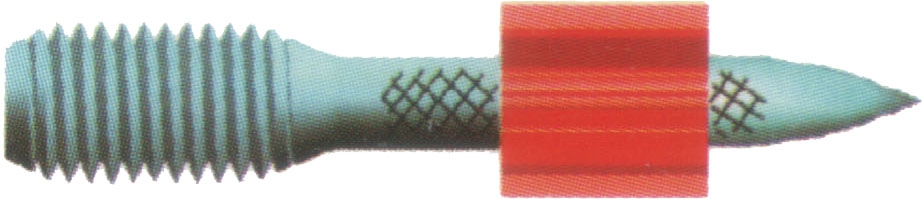

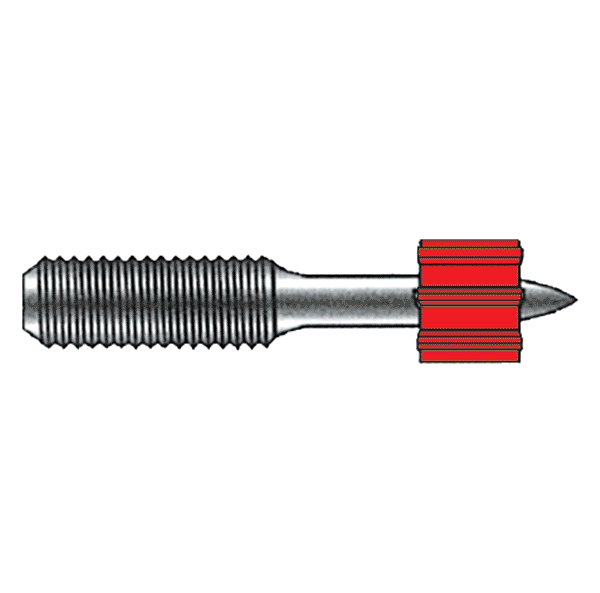

HM8-15-14 S8 Thread length: 15mm/ 5/8 Shank length:14mm/ 1/2

HM8-20-14 S8 Thread length: 20mm/ 3/4 Shank length:14mm/ 1/2

HM8-25-14 S8 Thread length: 25mm/ 1 Shank length:14mm/ 1/2

HM8-30-14 S8 Thread length: 30mm/ 1-1/8 Shank length:14mm/ 1/2

HM8-35-14 S8 Thread length: 1-3/8  Shank length:14mm/ 1/2

about the thread length and shank length,we can follow customer requirement OEM

Thead Diameter: 1/4, Shank Diameter: 3.7mm/.145,

Accessory: 6.5mm diameter plastic cap and 8mm flute or plastic washer

Note: shank can be knurled thread and shank length can be made by request of customers

Model:

 1/4-11-13S8K Thread Length: 11mm/ 1/2 Shank Length:13mm/ 1/2

 1/4-11-27S8 Thread Length: 11mm/ 1/2 Shank Length:27mm/

 1/4-11-32S8 Thread Length:11mm 1/2 Shank Length: 32mm/ 1-1/4

 1/4-20-13S8K Thread Length: 20mm/ 3/4 Shank Length:13mm/ 1/2

 1/4-20-27S8 Thread Length: 20mm/ 3/4 Shank Length:27mm/ 1

 1/4-20-32S8 Thread Length: 20mm/ 3/4 Shank Length: 32mm/ 1-1/4

 1/4-20-52S8 Thread Length: 20mm/ 3/4 Shank Length:52mm/ 2

Head Diameter: 1/4 Shank Diameter: 3.8mm/.150

Accessory: actuate hat or 1/4 diameter flute  Note: for high velocity tools

Model:

HPD1/4-25P6 25mm/ 1

HPD1/4-32P6 32mm/ 1-1/4

HPD1/4-38P6 38mm/ 1-1/2

HPD1/4-51P6 51mm/ 2

HPD1/4-63P6 63mm/ 2-1/2

HPD1/4-76P6 76mm/ 3

Head Diameter: 1/4  Shank Diameter: 3.8mm/.150  E

yelet Diameter: 3.5mm  Accessory: actuate hat or 1/4 diameter flute

Note: for high velocity tools

Model:

HEP1/4-40P6 40mm/ 1-1/2

HEP1/4-50P6 50mm/ 2

HEP1/4-60P6 60mm/ 2-1/2

Head Diameter: 6mm/.235,  Shank Diameter: 3.8mm/.150

Eyelet Diameter: 3.2mm,  Accessory: actuate hat or 6mm diameter flute

Note: for high velocity tools.

Model:

HEP6-40P6 40mm/ 1-1/2

HEP6-50P6 50mm/ 2

HEP6-60P6 60mm/ 2-1/2

SSYD

Head Diameter:8mm/.315

Shank Diameter:3.7mm/.145

Accessory:8mm diameter plastic washer

Meteriial:130m high quality stainless steel material

Model:

SSYD22P8 22mm/ 7/8

SSYD22P8 24mm/ 1

SSYD27P8 27mm

Head Diameter: 10mm/.395

Shank Diameter: 4.5mm/.177

Accessory: flute

Model:   DD27P10 27mm/ 1  DD32P10 32mm/ 1-1/4

             DD37P10 37mm/ 1-1/2 DD42P10 42mm 1-5/8

             DD47P10 47mm/ 1-7/8  DD52P10 52mm/ 2

             DD57P10 57mm/ 2-1/4  DD62P10 62mm/ 2-1/2

             DD72P10 72mm/ 3

Head Diameter: 14mm/.551 Shank Diameter: 4.6mm/.181

Accessory: 14mm diameter steel washer

Note: vertical knurling can be made on the shank.

Model: DZ22S14 22m/ 7/8,  DZ25S14 25mm/ 1

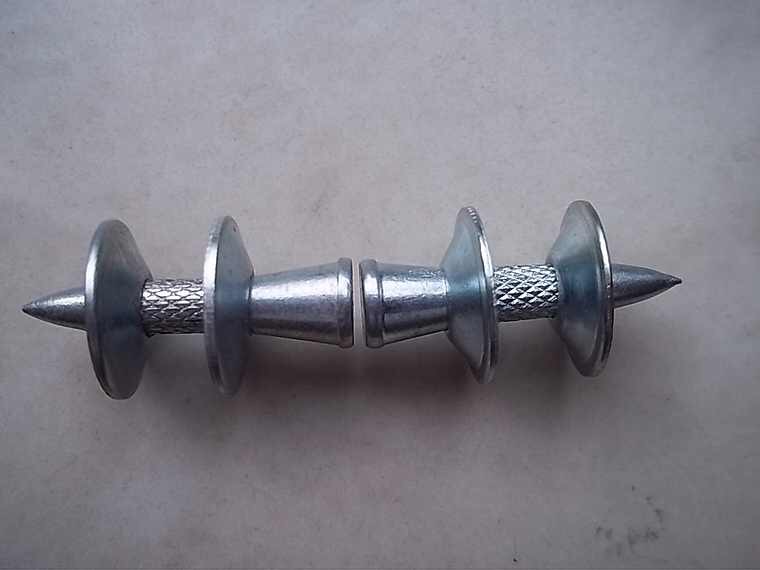

Head Diameter: 6.3mm/.250

Shank Diameter: 4.6mm/.181

Accessory: double 14mm diameter steel washers

Note: knurled shank

Model:   ENP22S14 22mm/ 7/8

ENP25S14 25mm/ 1

ENP32S14 32/ 1-1/4

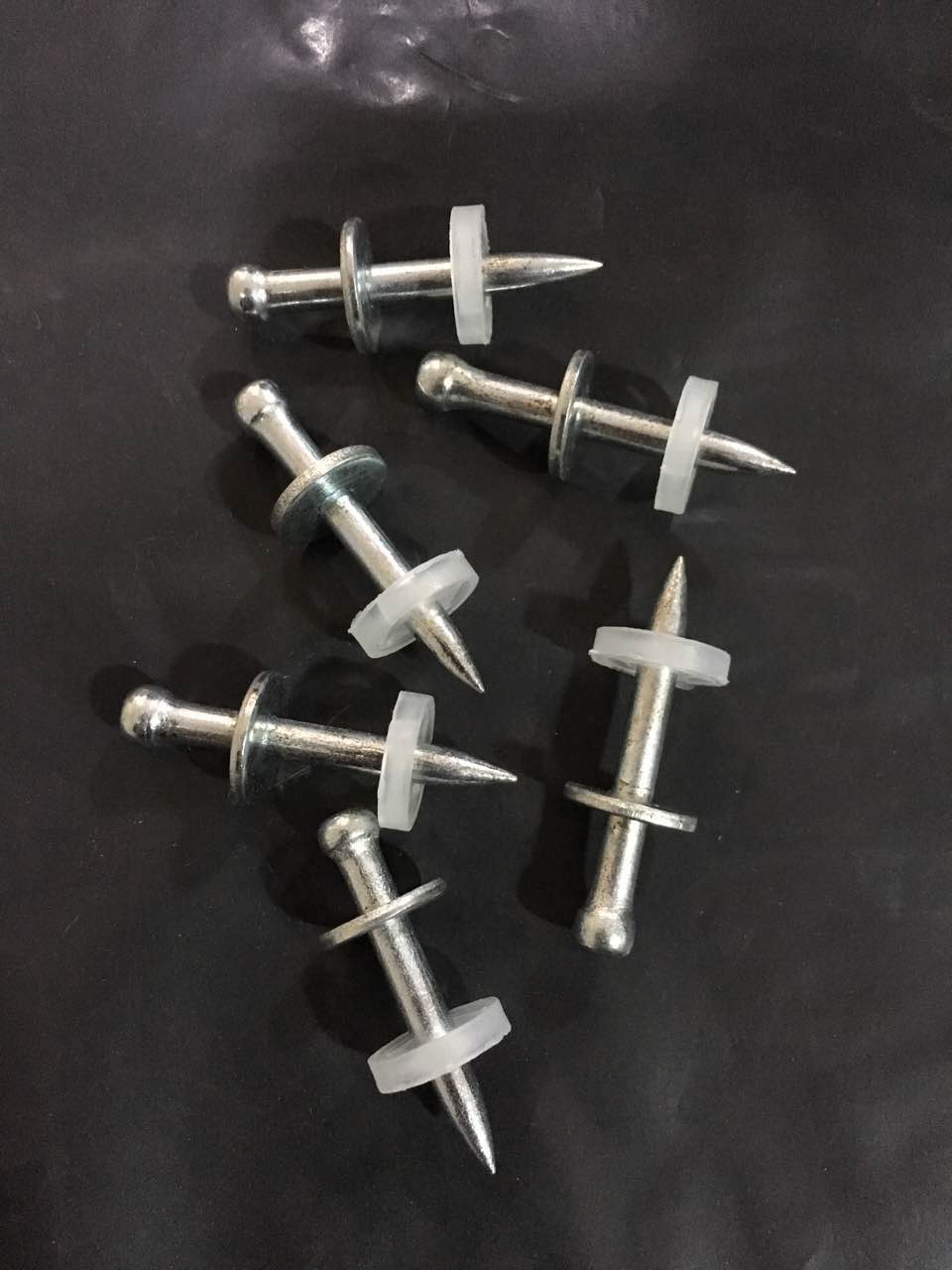

Head Diameter:5.7mm/.225, Shank Diameter:3.7mm/.145

Accessory: double 12mm diameter steel washers

Model:

QDDW82S12 82mm/ 3-1/4 HILTI:NK82S12

QDDW92S12 92mm/ 3-5/8 HILTI:NK92S12

QDDW97S12 97mm/ 3-7/8 HILTI:NK97S12
